4 Axis Lathe and Turning CNC controller with new control panel ARM+DSP+FPGA usb cnc complete kit

QQ20210507134718

Number of control axes	4axes (X, Y, Z, A)
Minimum programming	0.001mm
Maximum programming	± 99999.999mm
Top speed	30m / min
Feed speed	0.001-15m / min
Manual continuous	One axis or simultaneous multi-axis
Interpolation method	Straight line, arc, thread interpolation
Tool offset	Length compensation, nose radius C compensation
Spindle functions	Gear, dual analog control, rigid tapping
Handwheel functions	Panel type, plug-in hand-held
Screen saver function	Screen saver function
Communication function	RS232, U disk interface
Compensation function	Knife compensation, between compensation, screw compensation, radius compensation
Program editing	Male / English, relative / absolute programming
Limit function	Software limit, hardware limit
Pre-reading function	Short line preprocessing 10,000 lines
Password protection	Multi-level password protection
Input and output	I / O point 24X24
PLC programming	The user is free to design PLC function
Acceleration and deceleration control	Linear acceleration and deceleration, the number of additions and subtractions
Encoder lines	Any setting
User macro program	Yes
Electronic gear functions	Yes
Vice-panel	A-type panel with hand wheel; B band band switch
Applicable machine tools	CNC Lathe & Turning Machinery and specially automatic equipment

Control axis:
* Control axis: 3-5 axis (X, Y, Z,A,B)
* Interpolationaxis: Any 3 axis linear interpolation , any 2 axis circular interpolation
* Position command range:

Spindle axis functions:
* Two channels 0V ~ 10V analog voltage output, support double spindle control
* Spindle encoder: encoder lines can be set (100 p/r ~ 5000p/r)
* Encoder and spindle’s transmission ratio: (1 ~ 255):(1 ~ 255)
* Spindle ration: 50% ~ 120% eight stages real-time tunning in total

Tool functions:
* Tool length compensation
* Tool point radius compensation (C type)

PLC functions:
 *  Two levels PLC programming, operation speed is 1.5μs/ step basic instruction; 4700 steps mostly, the cycle of the first level programming is 8ms.
 *  Support PLC warning and PLC alarm.
 *  Support multiply PLC programming (mostly 20), the current PLC programming can be chosen.
 *  45 kinds of commands (10 kinds of basic commands, 35 kinds of function commands)
 *  I/O unit input/output: 32/32

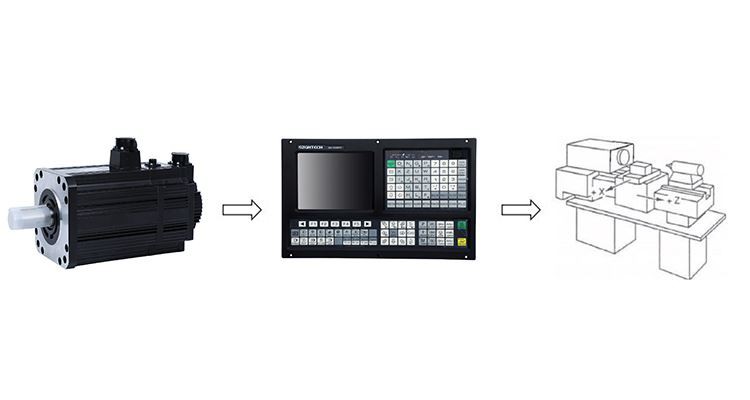

Related products：
1.CNC Controller
2,Axis servo motor &driver
3.Spindle Servo Motor&driver
4,Rotary table

Application: CNC Lathe & Turning Machinery and specially automatic equipment
